    20U53 & 20U63 Artisan Zig Zag Product Information


 complete machines from £541 + vat

Based around the very successful SINGER 20U series of machines, here is the current model.  Manufactured to a very high quality.    Semi-industrial artisan ZIG-ZAG Sewing Machine. Straight and Zig Zag sewing upto 9mm with our NEW 20U93 subclass. Very Popular in Tailors Shops because of it's versatility. Proven design.
The 20U93 is an ideal addition to any sample room, alteration or dry cleaners shop. Also used extensively in Craft Workshops for applique, embroidery etc. Versatile and easy to use. Accepts all standard lockstitch format accessory feet. Supplied with FULL accessory kit, including Straight Stitch Conversion Kit.  20U93 offers maximum stitch width of 9mm for extra wide emboidery and tacking operations.

STRAIGHT STITCHING for all general sewing
ZIG ZAG STITCHING for OVEREDGING, APPLIQUE, EMBROIDERY, ELASTIC ATTACHING LIGHT PIPING, ZIPPER SEWING,  BUTTON ATTATCHING, BUTTONHOLES, BARTACKS etc




Basic Machine is supplied complete on Type 101 single phase (240v) unit, or as an Option, we can supply on a Castor Stand (as shown).




uses SCHMETZ 134R or SY1906 Needle

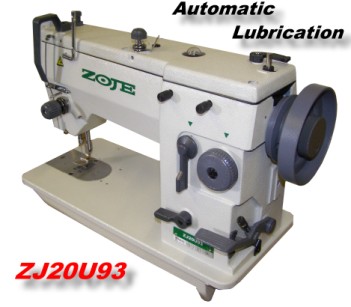

click to zoomMedium Speed (2500s.p.m.) Artisan ZIG-ZAG Sewing Machine with forward and reverse sewing.
Supplied on Single Phase (230v) unit

click here for more detail

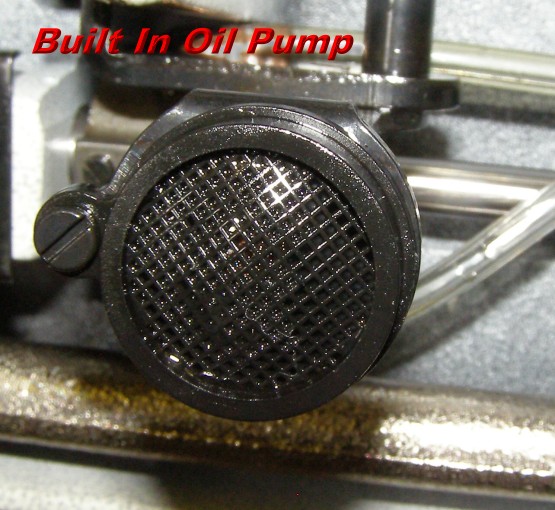

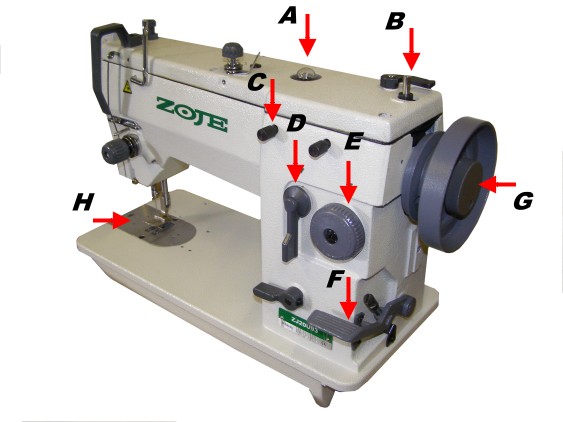

A. Automatic Lubrication
B. Integral Bobbin Winder
C. Zig Zag Width Lock

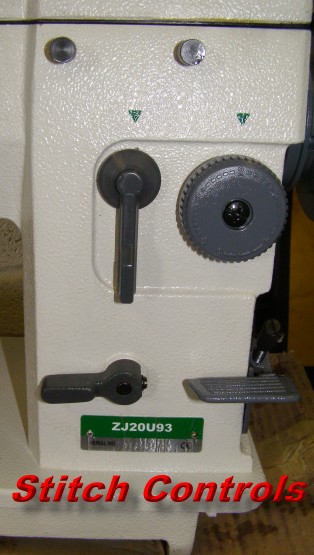

D. Zig Zag Width Control Upto 9mm
E. Sitch Size Control Upto 5mm
F. Reverse Sewing With Stitch Size Balance Adjustment
G. Disengageable Handwheel For Winding Bobbins

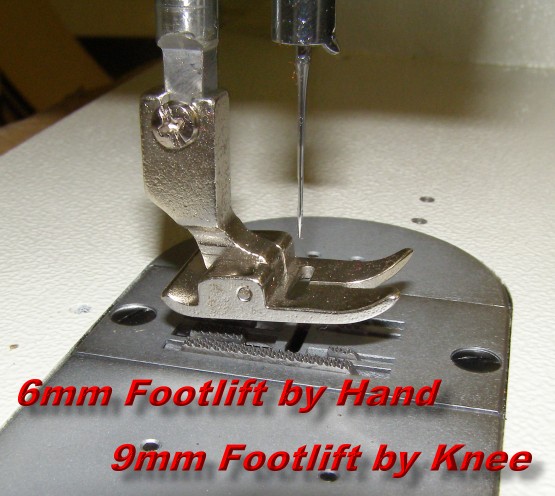

H. Generous Footlift 6mm by Hand and 9mm by Kneelift

 click to zoom         click to zoom

Knee Control lifts the Presser Foot leaving both hands free to handle the work.
Knee control can also be used to control Zig Zag Width for embroidery applications.

Supplied complete with all Guards to comply with Health and Safety requirements.

CE & TUV Rheinland Tested & Approved

Popular Parts for 20U Machines >> HERE
55623 Bobbin
541678 Bobbincase (also 410025)
410054 Rotary Hook (also 541674)
541566 Presser Foot
541936 Needleplate

20U Service Kits Are >>  HERE

We are the UK importer, so with no middleman we can offer this machine at substantial savings over current market prices...call us today.

OPTIONAL EXTRA's INCLUDE

Halogen Needle Light.
